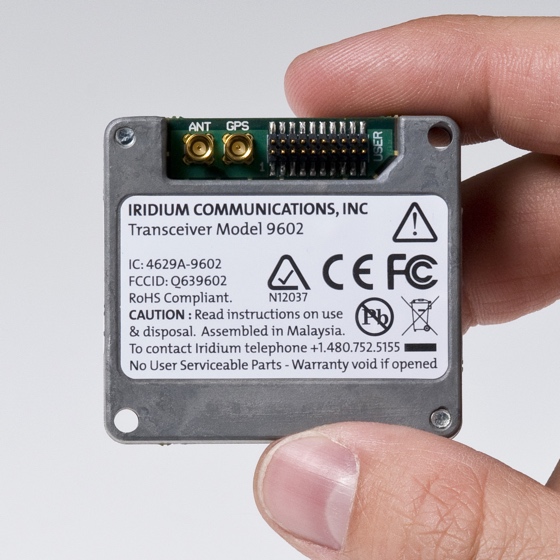

Iridium Satellite 9602 LBT Transceiver Module (SBD only)

Details 9602 is intended for incorporation into a final Iridium subscriber product that would supply power, provide an antenna, and provide user interface components such as keypad and display. The 9602 is a small, low-cost satellite transceiver designed to operate with the Iridium network in SBD-only mode. It is intended to be used as a daughterboard fitted on another host system motherboard.The 9602 communicates with a host system through serial interface at 3.3V digital signal levels instead of RS232. Dimensions: 41 mm x 45 mm x 13 mm (1.61″ x 1.77″ x 0.51″) Weight: 30 g (1.06 oz) Input Voltage: 4.5V to 5.5V Avg. Current: 190mA @ 5V I/O Interface: Samtec FTSH-110-01-L-DV Antenna Interface: MMCX Software Interface: AT Commands Operating Temp: –40°C to 85°C (–40°F to 185°F) Operating Humidity:
